Produktnummer:
10208287
Herstellernummer:
23050.0006
Hersteller:
Halder

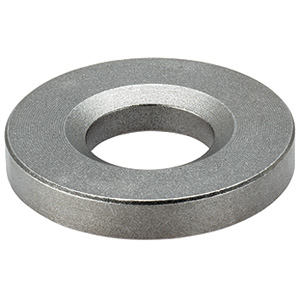

Halder 23050.0006 Kugelscheibe DIN 6319 Ø 6.4, aus Einsatzstahl, Form C
d1 H13:
6,4
| Anzahl | *Preis |
|---|---|
| Bis 998 |
0,42 €
|
| Bis 1397 |
0,38 €
|
| Bis 1797 |
0,34 €
|
| Ab 1798 |
0,31 €
|
Produktnummer:
10208287
EH 23050 Kugelscheiben DIN 6319 Form C
Beschreibung
Werkstoff: Einsatzstahl, einsatzgehärtet
Eigenschaften
| Belastbarkeit bei statischer Belastung max. kN: | 9 |
|---|---|
| Drehmoment für Schraubverbindungen max. Nm: | 10 |
| Gewicht (g): | 1,0 |
| d1 H13: | 6,4 |
| d3: | 12 |
| für Bolzen d6: | 6 |
| h1: | 0,7 |
| h2: | 2,3 |
| h4 ~ mit Kegelpfanne Form D: | 4,2 |
| h4 ~ mit Kegelpfanne Form G: | 5,4 |
| r1: | 9 |
Dokumente
2
| Variante | d1 H13 | Preis |
|---|---|---|
|
10208287 (23050.0006) |
6,4 | ab 0,42 € |
|
10208288 (23050.0008) |
8,4 | ab 0,49 € |
|
10208289 (23050.0010) |
10,5 | ab 0,62 € |
|
10208290 (23050.0012) |
13 | ab 0,81 € |
|
10208292 (23050.0016) |
17 | ab 1,11 € |
|
10208291 (23050.0014) |
15 | ab 1,20 € |
|
10208293 (23050.0020) |
21 | ab 1,69 € |
|
10208295 (23050.0024) |
25 | ab 2,51 € |
|
10208297 (23050.0030) |
31 | ab 4,29 € |
|
10208294 (23050.0022) |
23 | ab 8,10 € |
|
10208296 (23050.0027) |
28 | ab 8,75 € |
|
10208299 (23050.0036) |
37 | ab 9,45 € |
|
10208298 (23050.0033) |
34 | ab 9,55 € |
|
10208301 (23050.0042) |
43 | ab 13,80 € |
|
10208300 (23050.0039) |
40 | ab 18,05 € |
|
10208302 (23050.0048) |
50 | ab 20,60 € |
|
10208303 (23050.0052) |
54 | ab 23,35 € |
|
10208304 (23050.0056) |
58 | ab 34,35 € |
|
10208305 (23050.0060) |
62 | ab 41,40 € |
|
10208306 (23050.0064) |
66 | ab 46,95 € |
